Turning Center
Pro Series
In today’s competitive market, you need robust CNC turning centers with uncompromised performance and specifications to produce world class products quickly accurately and with minimum non productive time.

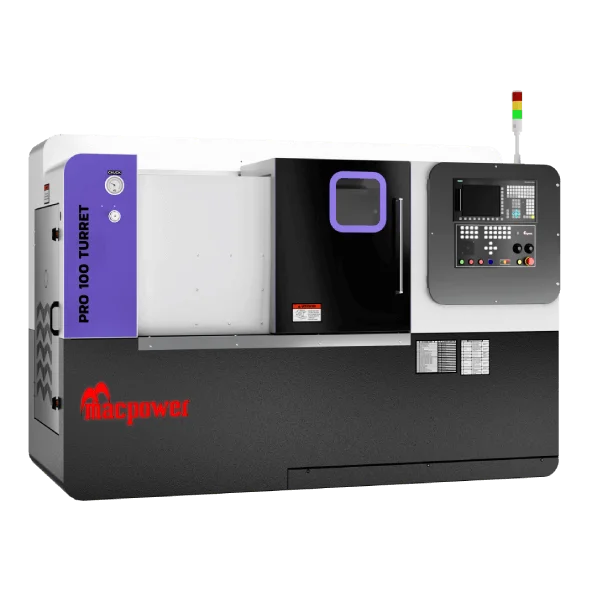

Pro 100 Turret
JUNIOR
Standard Accessories
- Roller Guide Ways
- AC Spindle Drive & AC Servo Drive
- Hydraulic Chuck with Actuating Hollow Cylinder
- Hydraulic Unit
- Coolant System
- Centralized Lubrication System
- Axial & Radial Blocks
- Boring Bar Blocks
- Patrol Light
- Foot Switch
Optional Accessories
- Chip Conveyor
- Bar Feeder
- Stabilizer
- Hydraulic Collet Chuck
- Auto Door
- Oil Skimmer
- Steady Rest
- Tooled Up Solution
- Tool Probe
- Work Probe
Machine Output
Technical Specifications
Capacity
| DESCRIPTION | UNIT | Pro 100 Turret |
|---|---|---|
| Swing Over Bed | mm | ø 460 |
| Maximum Tuming Dia. (Limited Length) | mm | ø 250 |
| Maximum Turning Length | mm | 200 |
Slides
| DESCRIPTION | UNIT | Pro 100 Turret |
|---|---|---|
| Cross X axis Travel | mm | 450 |
| Longitudinal (Z axis) Travel | mm | 200 |
| Rapid Fæd (X & Z axis) | m/mm | 24 |
Main Spindle
| DESCRIPTION | UNIT | Pro 100 Turret |
|---|---|---|
| Spindle Nose | - | A2-5 |
| Max. Bar Capacity | mm | ø 32 |
| Chuck Size | mm | ø 165 x 3 Jaw |
| Speed Range | rpm | 50 - 3500 |
| Spindle Motor | KW | 5.5 |
Tooling Arrangement
| DESCRIPTION | UNIT | Pro 100 Turret |
|---|---|---|
| No. of Tools | No. | 5 |
| Tool Size | mm | 20 x 20 |
| Max. Boring Bar Capacity | mm | ø 32 |
Accuracy
| DESCRIPTION | UNIT | Pro 100 Turret |
|---|---|---|
| Positioning Accuracy | mm | 0.008 |
| Repeatability | mm | 0.007 |
Other Data
| DESCRIPTION | UNIT | Pro 100 Turret |
|---|---|---|
| Weight (Approx.) | kg | 2100 |
| Dimensions (W x D x H) (Approx.) | mm | 2135x1465x1660 |
