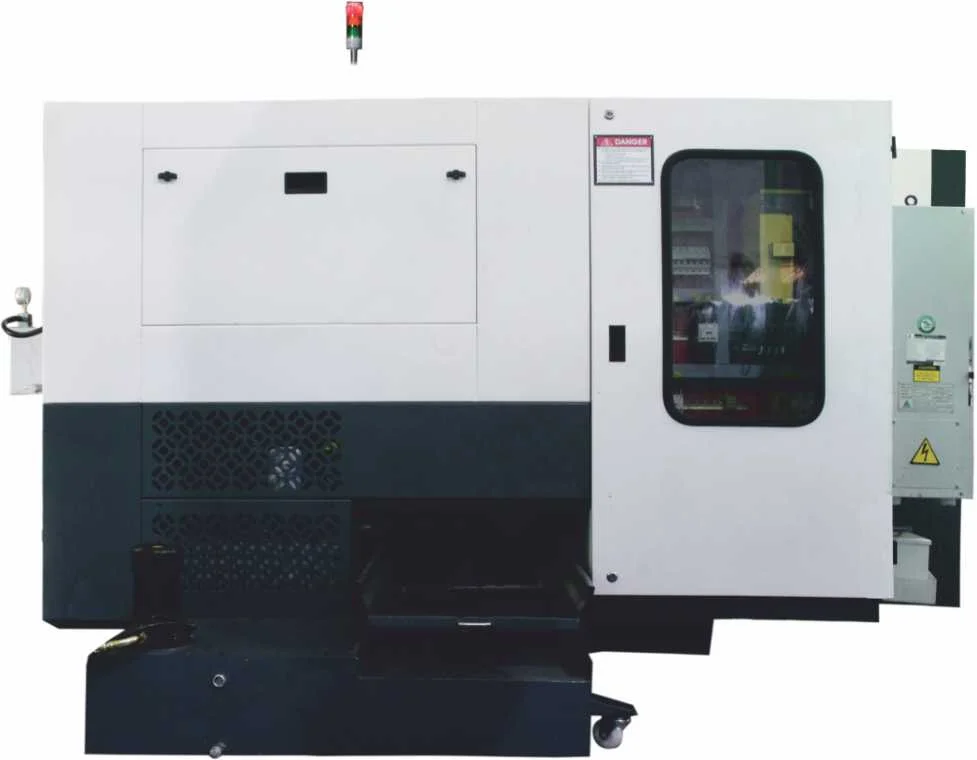

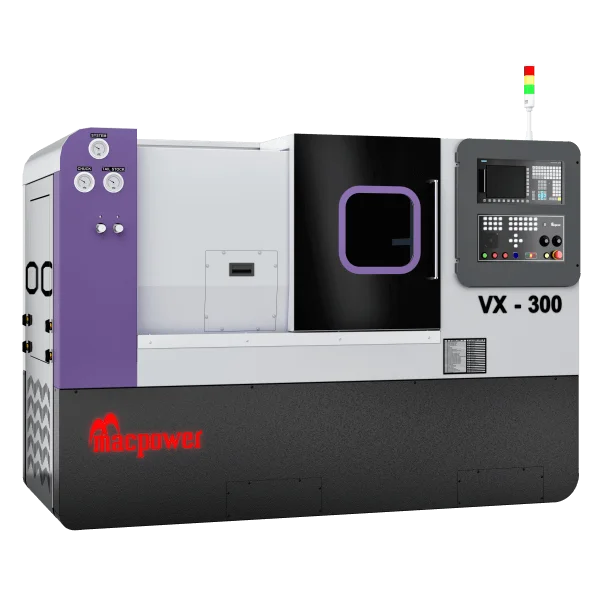

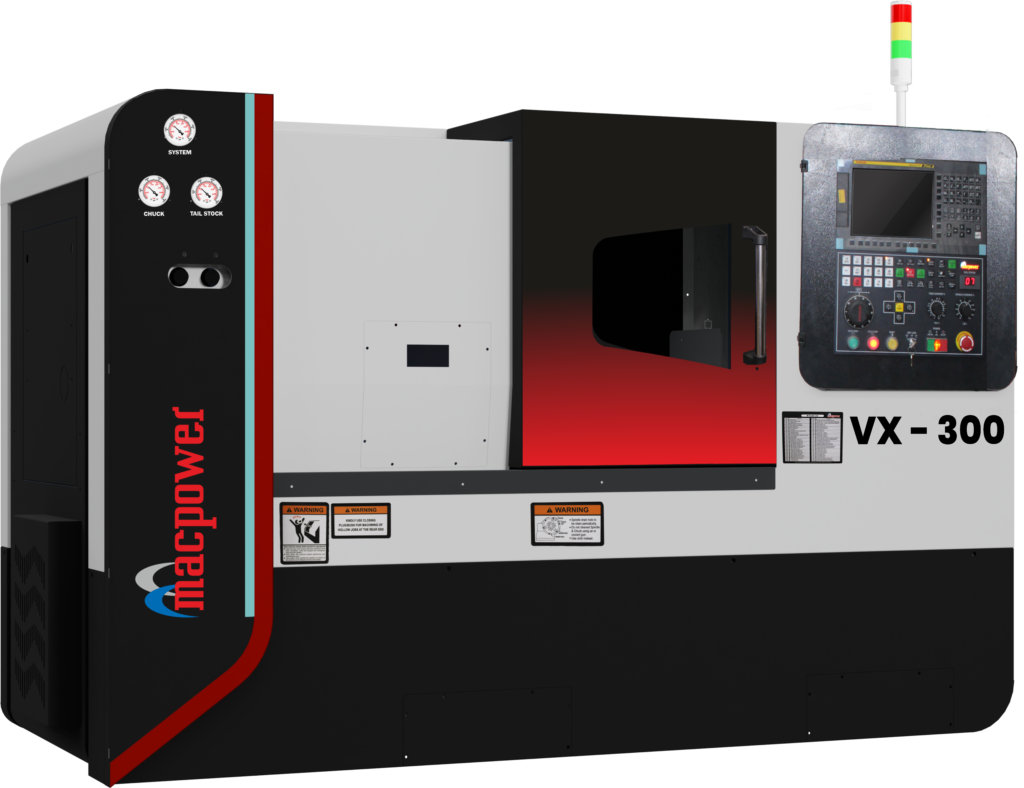

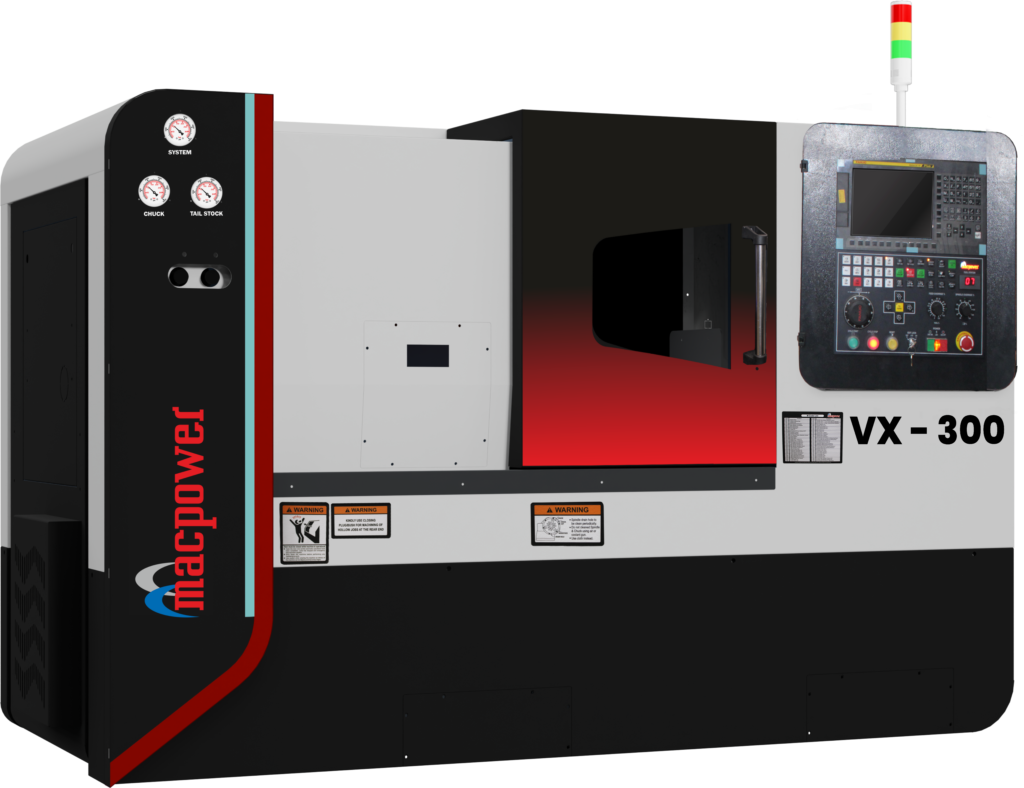

VX Series

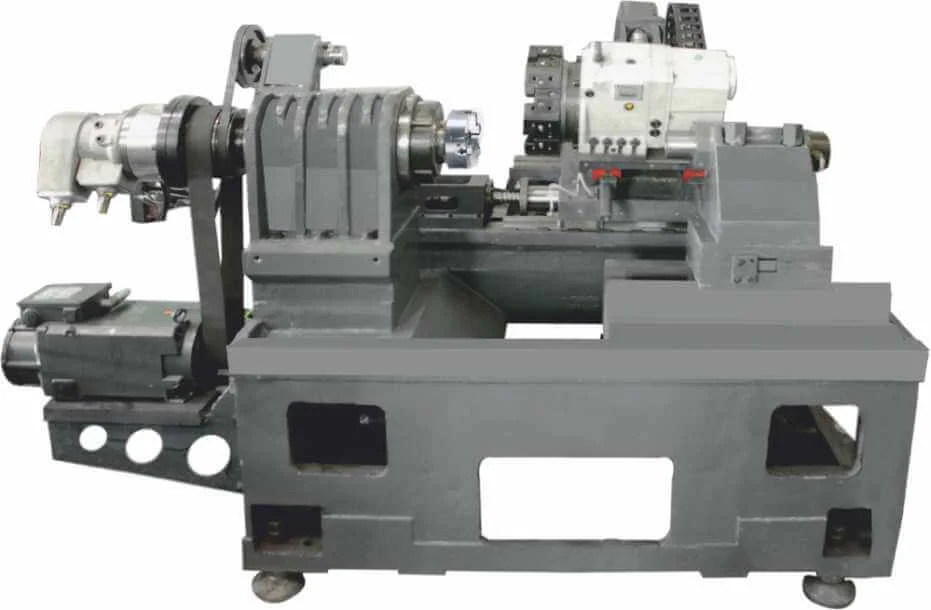

Spindle

The spindle is of cartridge type design and uses 3 super precision angular contact bearings at front and 2 angular contact bearings at rear end. The bearing configuration gives high stiffness to the spindle assembly in both axial and radial direction.

Precise Roller Guideways

All axes are furnished with precise and heavy load capacity re-circulating roller guide ways enabling high acceleration-de acceleration and hence batter productivity.

Double Anchored Ball Screws

Revised pedestal design for ball screws, Ball Screws are directed by direct coupled AC servo motor with flexible coupling. This greatly improves positioning accuracy, and provides more accurate threading and contouring. Ball Screws are anchored at both ends and inspected for parallelism with axis guide. Preloaded ball nuts eliminate backlash.

Turret

Bi-directional turret in either direction for minimum possible induction time they are robust and completely enclosed with complete lubrication.

Advance Inspection Technology

Laser Calibration is carried out to insure the linear accuracy, providing accurate compensation for pitch and backlash. The machine facilities the attainment of positional accuracy up to 0.010 mm / 300 mm and repeatability accuracy up to 0.007 mm.

Heavy duty roller LM guideways

<p>All axes are furnished with precise and heavy load capacity re-circulating roller guide ways enabling high acceleration-de acceleration and hence better rigidness.</p>
