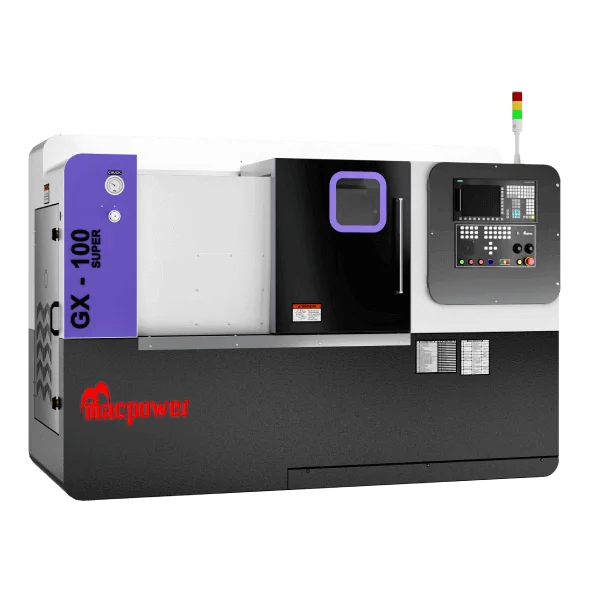

- GX 100 SUPER
In today’s competitive market, you need robust CNC turning centers with uncompromised performance and specifications to produce world class products quickly accurately and with minimum non productive time.
Overview

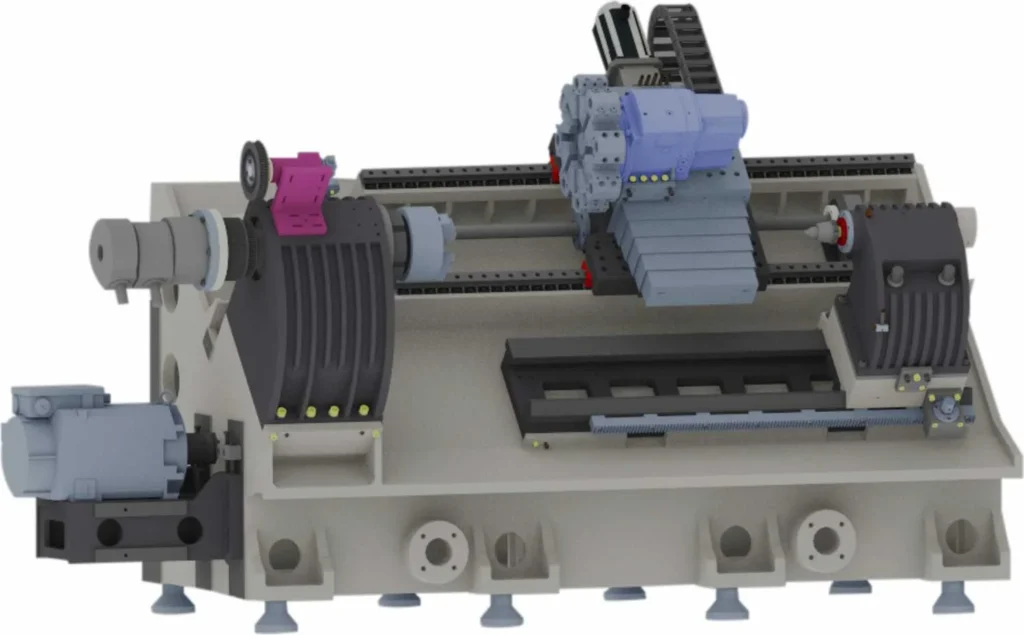

Structure & Frame
The 45° degree inclined single piece (Monoblock) bed allows heavy depth of cut without vibration since the improved version of the Mono structure imparts broader base with harmonious ribbed structure. The graded casting along with evenly spreaded granular structure and optimally spaced LM allows smooth machining without vibration. All in all, it’s a single piece wonder for machining of various components manufactured to cater various sectors of the industry.
Tailstock
The tailstock consists of a hydraulically operated quill, which moves inside the housing. The quill and body are independently moveable. The tailstock is supported on V and flat guide ways. Programmable quill is provided as a standard feature.
Carriage Assembly
X and Z Slide are mounted on precise four circuit linear motion blocks with high load carrying capacity, designed to support increased acceleration and deceleration rates as well as cutting pressure.
Guarding
Equipped with the advantage of an ergonomic design, the machine comes with a full guard that ensures a clean premise during operation. This feature prevents contamination from spreading onto the machine slides, switches, and other electrical devices. The newly developed guarding is designed to support the structure effectively, reducing the overall footprint of the machine.

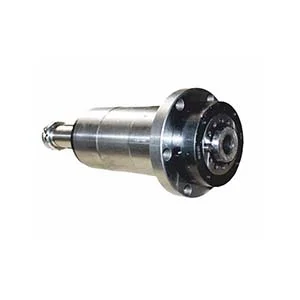

Spindle
The spindle is of cartridge type design and uses 3 super precision angular contact bearings at front and 2 angular contact bearings at rear end. The bearing configuration gives high stiffness to the spindle assembly in both axial and radial direction.

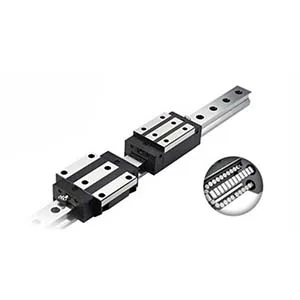

Precise Roller Guideways
All axes are furnished with precise and heavy load capacity re-circulating roller guide ways enabling high acceleration-de acceleration and hence batter productivity.

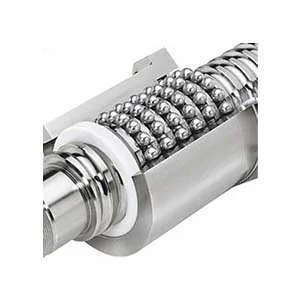

Double Anchored Ball Screws
Ball Screws are directed by direct coupled AC servo motor with flexible coupling. This greatly improves positioning accuracy, and provides more accurate threading and contouring. Ball Screws are anchored at both ends and inspected for parallelism with axis guide. Pre-loaded ball nuts eliminate backlash.

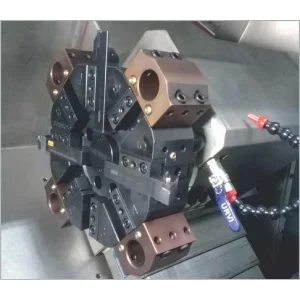

Turret
Bi-directional turret in either direction for minimum possible induction time they are robust and completely enclosed with complete lubrication.

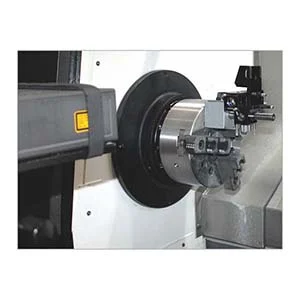

Advance Inspection Technology
Laser Calibration is carried out to insure the linear accuracy, providing accurate compensation for pitch and backlash. The machine facilities the attainment of positional accuracy up to 0.010 mm / 300 mm and repeatability accuracy up to 0.007 mm.
Standard Accessories
- Roller Guide Ways
- AC Spindle Drive & AC Servo Drive
- Machine with Tail Stock
- Hydraulic Chuck
- Bi-directional Electro Mechanical Turret or Hydraulic Turret
- Hydraulic Unit
- Coolant System
- Centralized Lubrication System
- Turning Tool Blocks
- Boring Bar Blocks
- Patrol Light
- Digital Tool Display
- Foot Switch
Optional Accessories
- Chip Conveyor
- Bar Feeder
- Bar Puller
- Live Tooling
- Stabilizer
- Hydraulic Collet Chuck
- Auto Door
- Oil Skimmer
- Steady Rest
- Tooled Up Solution
- Tool Probe
- Work Probe

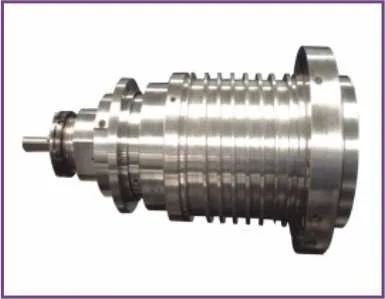

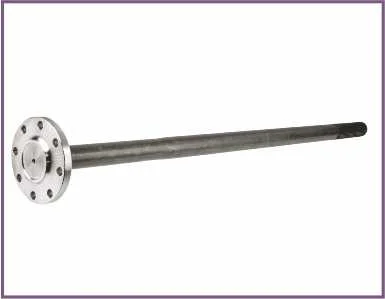

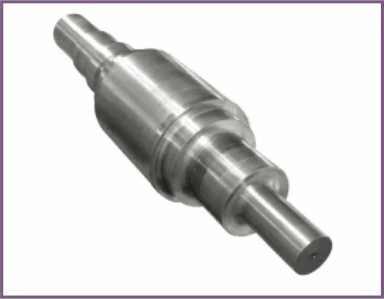

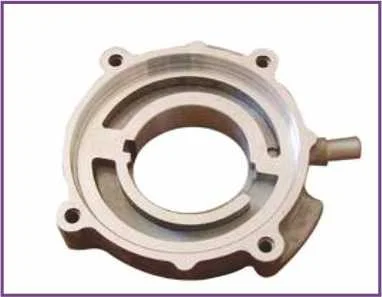

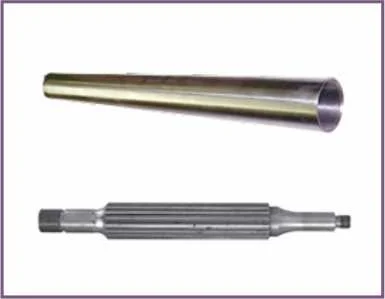

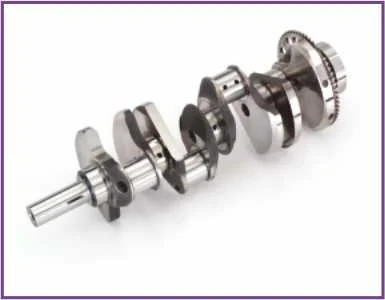

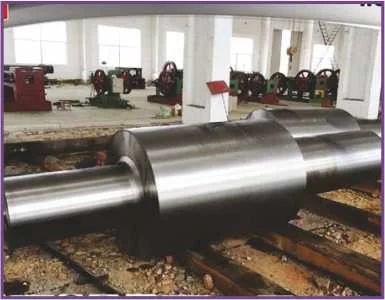

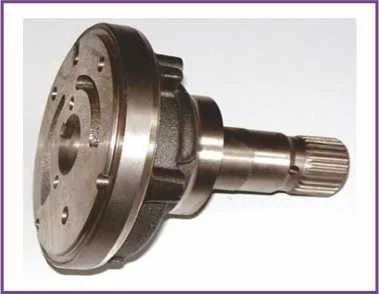

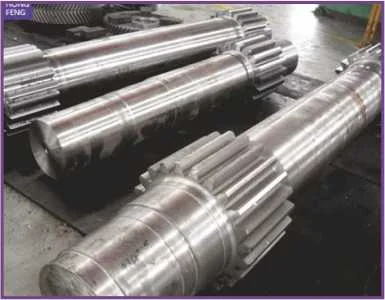

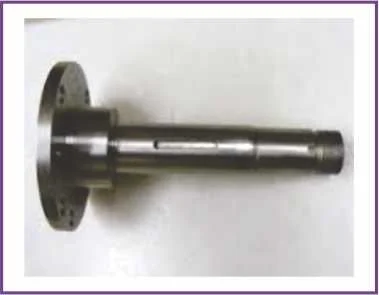

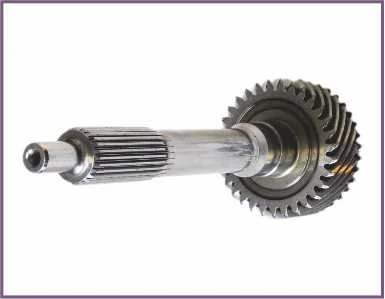

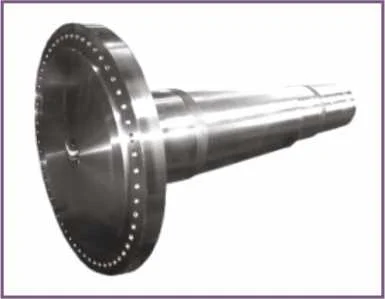

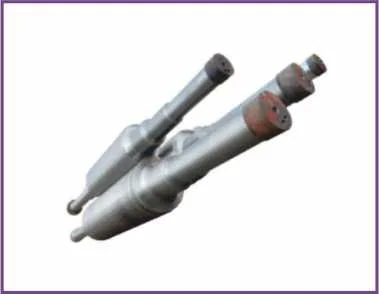

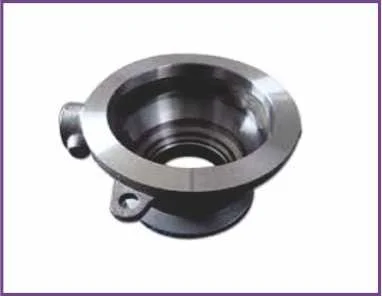

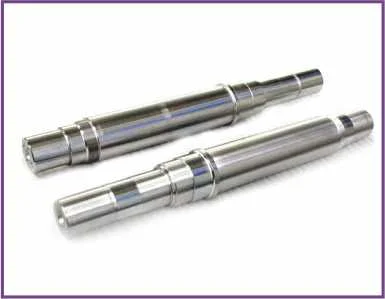

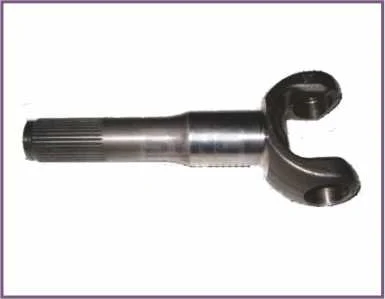

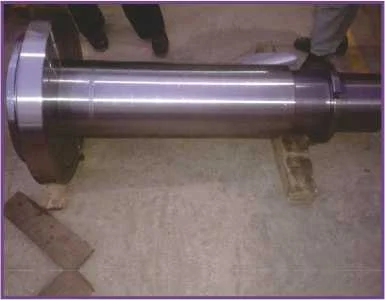

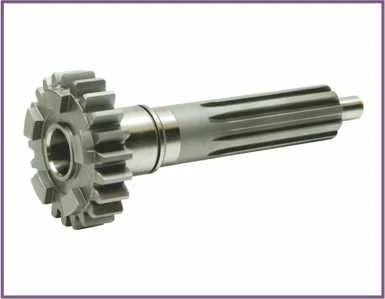

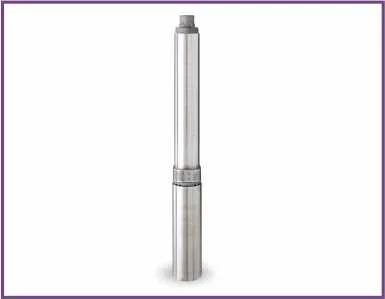

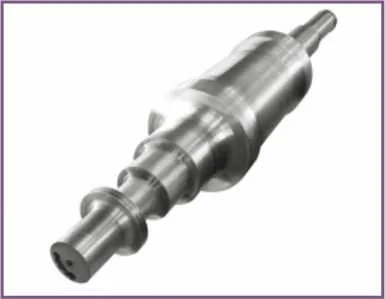

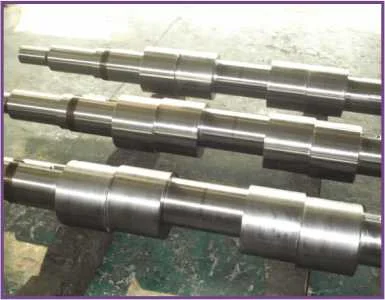

Machine Output
Technical Specifications
Capacity
| DESCRIPTION | UNIT | MONO 1000 | MONO 1000 SUPER | MONO 1200 | MONO 1200 SUPER | MONO 1500 | MONO 1500 SUPER | MONO 2000 | MONO 2000 SUPER |
|---|---|---|---|---|---|---|---|---|---|
| Swing Over Carriage | mm | Ø 250 | Ø 250 | Ø 250 | Ø 250 | Ø 250 | Ø 250 | Ø 250 | Ø 250 |
| Maximum Turning Dia.* | mm | Ø 350 | Ø 350 | Ø 350 | Ø 350 | Ø 350 | Ø 350 | Ø 350 | Ø 350 |
| Swing Over Bed | mm | Ø 500 | Ø 500 | Ø 500 | Ø 500 | Ø 500 | Ø 500 | Ø 500 | Ø 500 |
| Maximum Turning Length | mm | 1025 | 1025 | 1225 | 1225 | 1500 | 1500 | 2000 | 2000 |
| Distance Between Center | mm | 1070 | 1070 | 1270 | 1270 | 1545 | 1545 | 2045 | 2045 |
Slides
| DESCRIPTION | UNIT | MONO 1000 | MONO 1000 SUPER | MONO 1200 | MONO 1200 SUPER | MONO 1500 | MONO 1500 SUPER | MONO 2000 | MONO 2000 SUPER |
|---|---|---|---|---|---|---|---|---|---|
| Cross (X axis) Travel | mm | 185 | 185 | 185 | 185 | 185 | 185 | 185 | 185 |
| Longitudinal (Z axis) Travel | mm | 1025 | 1025 | 1225 | 1225 | 1500 | 1500 | 2000 | 2000 |
| Rapid Feed (X axis) | m/min | 24 | 24 | 24 | 24 | 20 | 20 | 20 | 20 |
| Rapid Feed (Z axis) | m/min | 24 | 24 | 24 | 24 | 20 | 20 | 20 | 20 |
Main Spindle
| DESCRIPTION | UNIT | MONO 1000 | MONO 1000 SUPER | MONO 1200 | MONO 1200 SUPER | MONO 1500 | MONO 1500 SUPER | MONO 2000 | MONO 2000 SUPER |
|---|---|---|---|---|---|---|---|---|---|
| Spindle Nose | - | A2-6 | A2-8 | A2-6 | A2-8 | A2-6 | A2-8 | A2-6 | A2-8 |
| Spindle Bore | mm | Ø 63 | Ø 90 | Ø 63 | Ø 90 | Ø 63 | Ø 90 | Ø 63 | Ø 90 |
| Max. Bar Capacity | mm | Ø 51 | Ø 75 | Ø 51 | Ø 75 | Ø 51 | Ø 75 | Ø 51 | Ø 75 |
| Chuck Size | mm | Ø 200 x 3 Jaw | Ø 250 x 3 Jaw | Ø 200 x 3 Jaw | Ø 250 x 3 Jaw | Ø 200 x 3 Jaw | Ø 250 x 3 Jaw | Ø 200 x 3 Jaw | Ø 250 x 3 Jaw |
| Speed Range | rpm | 50 – 3500 | 50 – 2500 | 50 – 3500 | 50 – 2500 | 50 – 3500 | 50 – 2500 | 50 – 3500 | 50 – 2500 |
| Full Power Range | rpm | 750 – 1750 | 750 – 1750 | 750 – 1750 | 750 – 1750 | 750 – 1750 | 375 – 1500 | 750 – 1750 | 375 – 1500 |
| Spindle Motor (Continues Rating) Spindle Motor (15min. Rating) | KW | 11 / 15 | 11 / 15 | 11 / 15 | 11 / 15 | 11 / 15 | 11 / 15 (P) | 11 / 15 | 11 / 15 (P) |
Turret
| DESCRIPTION | UNIT | MONO 1000 | MONO 1000 SUPER | MONO 1200 | MONO 1200 SUPER | MONO 1500 | MONO 1500 SUPER | MONO 2000 | MONO 2000 SUPER |
|---|---|---|---|---|---|---|---|---|---|
| Number of Stations | No. | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Tool Size | mm | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 |
| Max. Boring Bar Capacity | mm | Ø 40 | Ø 40 | Ø 40 | Ø 40 | Ø 40 | Ø 40 | Ø 40 | Ø 40 |
Tail Stock
| DESCRIPTION | UNIT | MONO 1000 | MONO 1000 SUPER | MONO 1200 | MONO 1200 SUPER | MONO 1500 | MONO 1500 SUPER | MONO 2000 | MONO 2000 SUPER |
|---|---|---|---|---|---|---|---|---|---|
| Quill Tapper | - | MT 5 | MT 5 | MT 5 | MT 5 | MT 5 | MT 5 | MT 5 | MT 5 |
| Quill Diameter | mm | Ø 80 | Ø 80 | Ø 80 | Ø 80 | Ø 80 | Ø 80 | Ø 80 | Ø 80 |
| Quill Stroke | mm | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
Accuracy
| DESCRIPTION | UNIT | MONO 1000 | MONO 1000 SUPER | MONO 1200 | MONO 1200 SUPER | MONO 1500 | MONO 1500 SUPER | MONO 2000 | MONO 2000 SUPER |
|---|---|---|---|---|---|---|---|---|---|
| Positioning Accuracy | mm | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 |
| Repeatability | mm | 0.007 | 0.007 | 0.007 | 0.007 | 0.007 | 0.007 | 0.007 | 0.007 |
Other Data
| DESCRIPTION | UNIT | MONO 1000 | MONO 1000 SUPER | MONO 1200 | MONO 1200 SUPER | MONO 1500 | MONO 1500 SUPER | MONO 2000 | MONO 2000 SUPER |
|---|---|---|---|---|---|---|---|---|---|
| Weight (Approx.) | kg. | 5100 | 5200 | 5400 | 5500 | - | - | - | - |
| Dimensions (W x D x H)(Approx.) | mm | 3975 x 2195 x 2000 | 3975 x 2195 x 2000 | 4220 x 2195 x 2000 | 4220 x 2195 x 2000 | - | - | - | - |
System
| DESCRIPTION | UNIT | MONO 1000 | MONO 1000 SUPER | MONO 1200 | MONO 1200 SUPER | MONO 1500 | MONO 1500 SUPER | MONO 2000 | MONO 2000 SUPER |
|---|---|---|---|---|---|---|---|---|---|
| Fanuc | - | OI TF PLUS | OI TF PLUS | OI TF PLUS | OI TF PLUS | OI TF PLUS | OI TF PLUS | OI TF PLUS | OI TF PLUS |
| Repeatability | - | 828 D | 828 D | 828 D | 828 D | 828 D | 828 D | 828 D | 828 D |
