In today’s competitive market, you need robust CNC turning centers with un-compromised performance and specifications to produce world class products quickly accurately and with minimum non productive time.

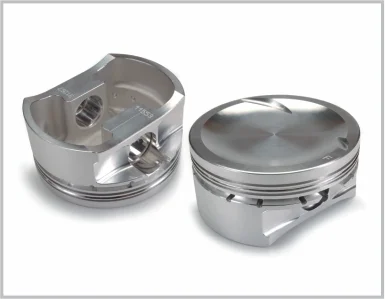

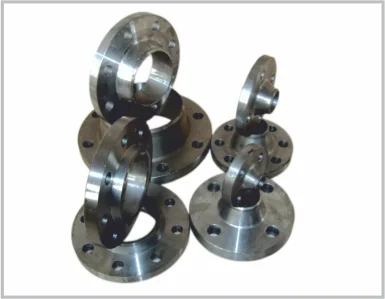

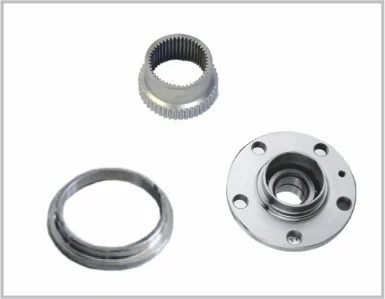

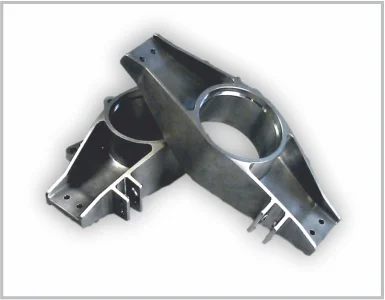

Machine Output
Technical Specifications
Capacity
| DESCRIPTION | UNIT | MX 135 | MX 165 |
|---|---|---|---|
| Standard Turning Dia. | mm | Ø 170 | Ø 170 |
| Maximum Turning Dia.* | mm | Ø 200 | Ø 200 |
| Swing Over Bed | mm | Ø 350 | Ø 350 |
| Maximum Turning Length | mm | 250 | 270 |
| Distance Between Center | mm | 300 | 310 |
Slides
| DESCRIPTION | UNIT | MX 135 | MX 165 |
|---|---|---|---|
| Cross (X axis) Travel | mm | 110 | 110 |
| Longitudinal (Z axis) Travel | mm | 250 | 270 |
| Rapid Feed (X axis) | m/min | 24 | 24 |
| Rapid Feed (Z axis) | m/min | 24 | 24 |
Main Spindle
| DESCRIPTION | UNIT | MX 135 | MX 165 |
|---|---|---|---|
| Spindle Nose | - | A2-4 | A2-5 |
| Spindle Bore | mm | Ø 40 | Ø 54 |
| Max. Bar Capacity | m/min | Ø 25 | Ø 42 |
| Chuck Size | mm | Ø 135 x 3 Jaw | Ø 165 x 3 Jaw |
| Speed Range | rpm | 50 – 4000 | 50 – 4000 |
| Full Power Range | rpm | 1000 – 2333 | 1000 – 3000 |
| Spindle Motor (Continues Rating) Spindle Motor (15min. Rating) | KW | 3.7 / 5.5 | 5.5 / 7.5 |
Turret
| DESCRIPTION | UNIT | MX 135 | MX 165 |
|---|---|---|---|
| Type | No. | BTP – 63 | BTP – 63 |
| Number of Stations | No. | 8 | 8 |
| Tool Size | mm | 20 x 20 | 20 x 20 |
| Max. Boring Bar Capacity | mm | Ø 32 | Ø 32 |
Tail Stock
| DESCRIPTION | UNIT | MX 135 | MX 165 |
|---|---|---|---|
| Quill Tapper | - | MT 4 | MT 4 |
| Quill Diameter | mm | Ø 70 | Ø 70 |
| Quill Stroke | mm | 80 | 80 |
Accuracy
| DESCRIPTION | UNIT | MX 135 | MX 165 |
|---|---|---|---|
| Positioning Accuracy | mm | 0.008 | 0.008 |
| Repeatability | mm | 0.007 | 0.007 |
Other Data
| DESCRIPTION | UNIT | MX 135 | MX 165 |
|---|---|---|---|
| Weight (Approx.) | kg | 2300 | 2400 |
| Dimensions (W x D x H)(Approx.) | mm | - | - |
System
| DESCRIPTION | UNIT | MX 135 | MX 165 |
|---|---|---|---|
| Fanuc | - | OI TF PLUS | OI TF PLUS |
| Siemens | - | 828 D | 828 D |
