Turning Center
LX Series
Heavy-duty CNC turning centers built for large-diameter, long-length components—delivering high torque, rigid machining, and consistently precise performance.
Turning Center
LX Series
In today’s competitive market, you need robust CNC turning centers with un-compromised performance and specifications to produce world class products quickly accurately and with minimum non productive time.

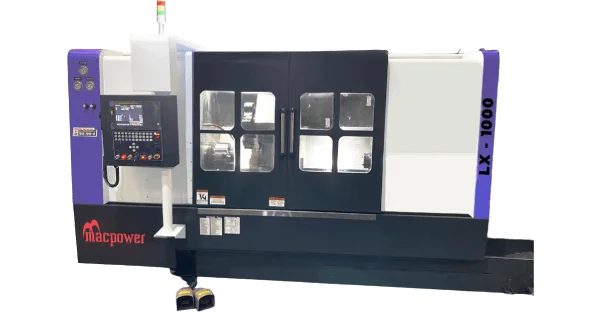

LX 1000
STANDARD

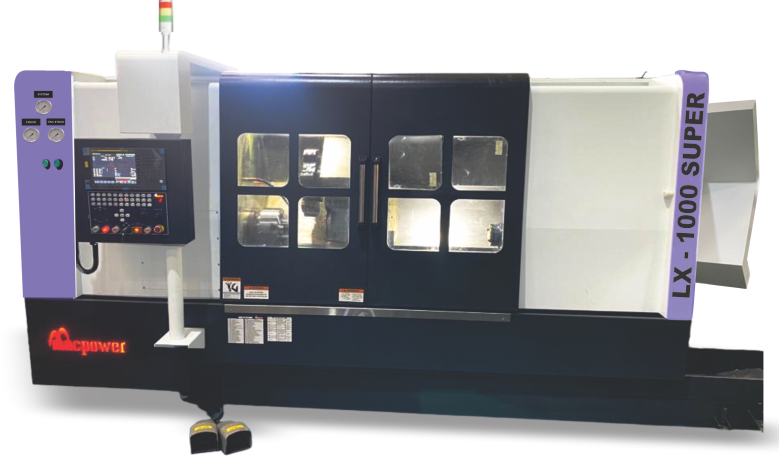

LX 1000
SUPER
LX 1500
STANDARD
LX 1500 SUPER
SUPER
LX 2000
STANDARD
LX 2000 SUPER
SUPER
LX 2500
STANDARD
LX 2500 SUPER
SUPER
LX 3000
STANDARD
LX 3000 SUPER
SUPER
Overview
LX
Structure & Frame
The 45° degree inclined single piece (Monoblock) bed allows heavy depth of cut without vibration since the improved version of the Mono structure imparts broader base with harmonious ribbed structure. The graded casting along with evenly spreaded granular structure and optimally spaced LM allows smooth machining without vibration. All in all, it’s a single piece wonder for machining of various components manufactured to cater various sectors of the industry.
LX
Tailstock
The tailstock consists of a hydraulically operated quill, which moves inside the housing. The quill and body are independently moveable. The tailstock is supported on V and flat guide ways. Programmable quill is provided as a standard feature.
LX
Carriage Assembly
X and Z Slide are mounted on precise four circuit linear motion blocks with high load carrying capacity, designed to support increased acceleration and deceleration rates as well as cutting pressure.
LX
Guarding
Equipped with the advantage of an ergonomic design, the machine comes with a full guard that ensures a clean premise during operation. This feature prevents contamination from spreading onto the machine slides, switches, and other electrical devices. The newly developed guarding is designed to support the structure effectively, reducing the overall footprint of the machine.
Standard Accessories
- Roller Guide Ways
- AC Spindle Drive & AC Servo Drive
- Machine with Tail Stock
- Hydraulic Chuck
- Bi-directional Electro Mechanical Turret or Hydraulic Turret
- Hydraulic Unit
- Coolant System
- Centralized Lubrication System
- Turning Tool Blocks
- Boring Bar Blocks
- Patrol Light
- Digital Tool Display
- Foot Switch
Optional Accessories
- Chip Conveyor
- Bar Feeder
- Bar Puller
- Live Tooling
- Stabilizer
- Hydraulic Collet Chuck
- Auto Door
- Oil Skimmer
- Steady Rest
- Tooled Up Solution
- Tool Probe
- Work Probe

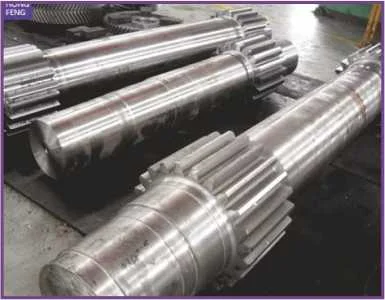

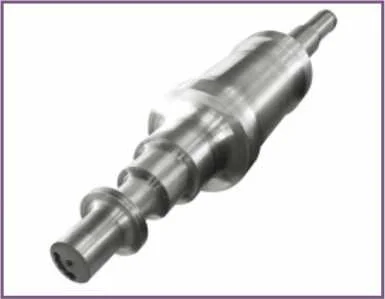

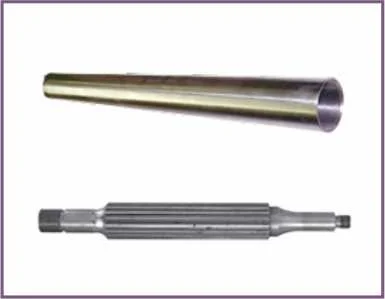

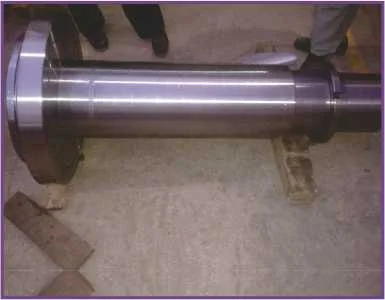

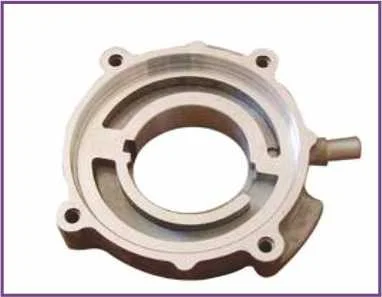

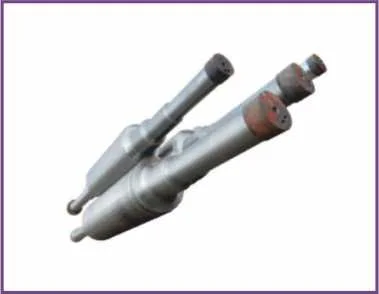

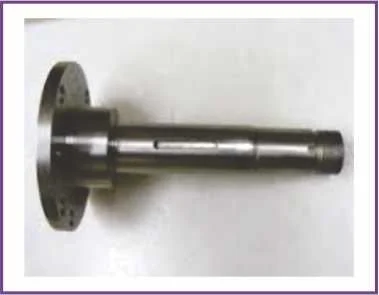

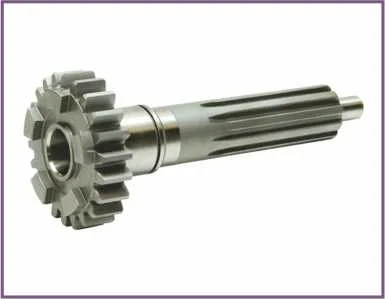

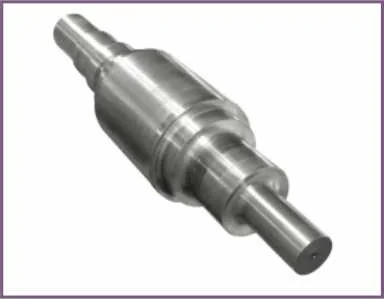

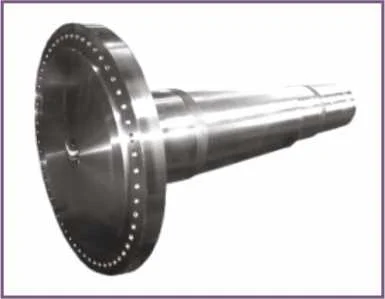

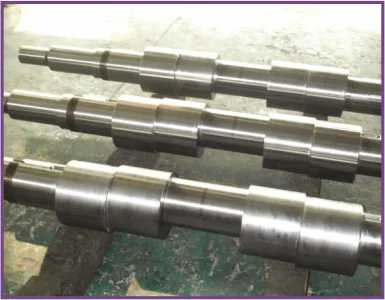

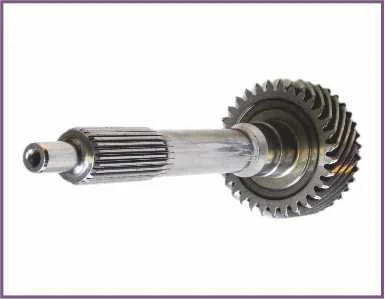

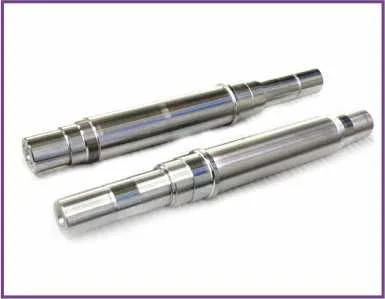

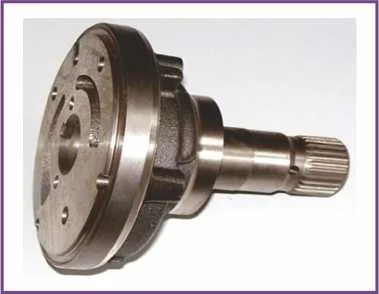

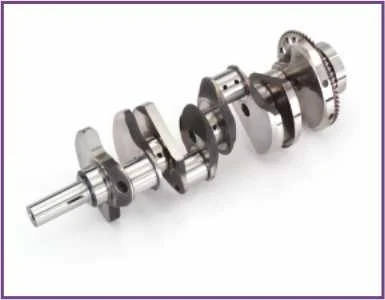

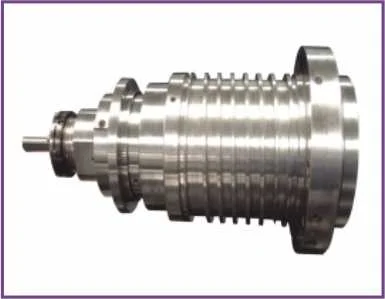

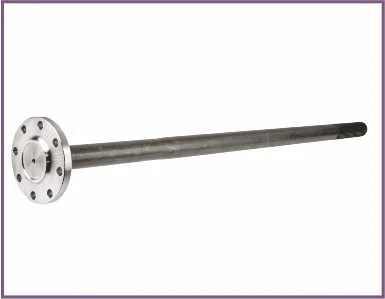

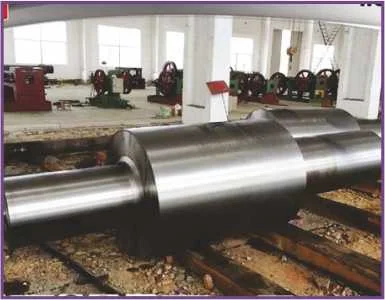

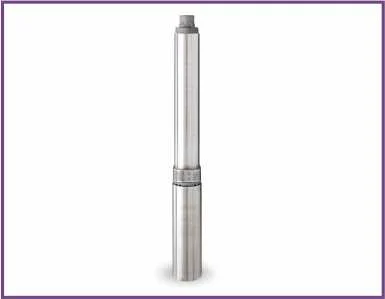

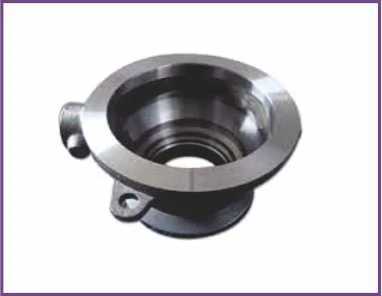

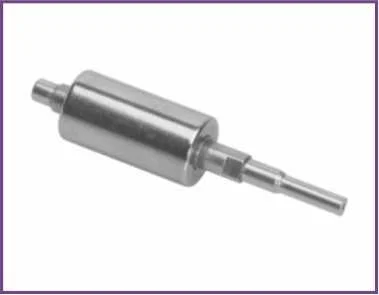

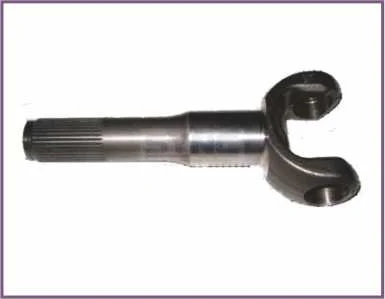

Machine Output
Technical Specifications
Capacity
| DESCRIPTION | UNIT | LX 1000 | LX 1000 SUPER | LX 1500 | LX 1500 SUPER | LX 2000 | LX 2000 SUPER | LX 2500 | LX 2500 SUPER | LX 3000 | LX 3000 SUPER |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Swing Over Bed | mm | Ø 710 | Ø 710 | Ø 710 | Ø 710 | Ø 710 | Ø 710 | Ø 710 | Ø 710 | Ø 710 | Ø 710 |
| Swing Over Carriage | mm | Ø 400 | Ø 400 | Ø 400 | Ø 400 | Ø 400 | Ø 400 | Ø 400 | Ø 400 | Ø 400 | Ø 400 |
| Maximum Turning Dia (Limited Length) | mm | Ø 630 | Ø 630 | Ø 630 | Ø 630 | Ø 630 | Ø 630 | Ø 630 | Ø 630 | Ø 630 | Ø 630 |
| Maximum Turning Length | mm | 1050 | 1025 | 1525 | 1525 | 2025 | 2025 | 2500 | 2500 | 3000 | 3000 |
Slides
| DESCRIPTION | UNIT | LX 1000 | LX 1000 SUPER | LX 1500 | LX 1500 SUPER | LX 2000 | LX 2000 SUPER | LX 2500 | LX 2500 SUPER | LX 3000 | LX 3000 SUPER |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Cross (X axis) Travel | MM | 325 | 325 | 325 | 325 | 325 | 325 | 325 | 325 | 325 | 325 |
| Longitudinal (Z axis) Travel | MM | 1050 | 1025 | 1525 | 1525 | 2025 | 2025 | 2500 | 2500 | 3000 | 3000 |
| Rapid Feed (X & Z axis) | M/MIN | 20 | 20 | 20 | 20 | 20 | 20 | 20/12 | 20/12 | 20/10 | 20/10 |
Main Spindle
| DESCRIPTION | UNIT | LX 1000 | LX 1000 SUPER | LX 1500 | LX 1500 SUPER | LX 2000 | LX 2000 SUPER | LX 2500 | LX 2500 SUPER | LX 3000 | LX 3000 SUPER |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Spindle Motor Power (Fanuc) | KW | 11/15(P) | 15/18(P) | 11/15(P) | 15/18(P) | 11/15(P) | 15/18(P) | 11/15(P) | 15/18(P) | 11/15(P) | 15/18(P) |
| Spindle Motor Power (Siemens) | KW | 12/16(P) | 15/18.5(P) | 12/16(P) | 15/18.5(P) | 12/16(P) | 15/18.5(P) | 12/16(P) | 15/18.5(P) | 12/16(P) | 15/18.5(P) |
| Spindle Speed Range | RPM | 50-2500 | 50-1500 | 50-2500 | 50-1500 | 50-2500 | 50-1500 | 50-2500 | 50-1500 | 50-2500 | 50-1500 |
| Spindle Bore | MM | Ø 90 | Ø 110 | Ø 90 | Ø 110 | Ø 90 | Ø 110 | Ø 90 | Ø 110 | Ø 90 | Ø 110 |
| Spindle Nose | - | A2-8 | A2-11 | A2-8 | A2-11 | A2-8 | A2-11 | A2-8 | A2-11 | A2-8 | A2-11 |
| Max. Bar Capacity | MM | Ø 75 | Ø 88 | Ø 75 | Ø 88 | Ø 75 | Ø 88 | Ø 75 | Ø 88 | Ø 75 | Ø 88 |
Turret
| DESCRIPTION | UNIT | LX 1000 | LX 1000 SUPER | LX 1500 | LX 1500 SUPER | LX 2000 | LX 2000 SUPER | LX 2500 | LX 2500 SUPER | LX 3000 | LX 3000 SUPER |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of Tool Stations | - | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Max. Boring Bar | MM | Ø 50 | Ø 50 | Ø 50 | Ø 50 | Ø 50 | Ø 50 | Ø 50 | Ø 50 | Ø 50 | Ø 50 |
| Tool Size (Cross Sectional) | MM | 32 x 32 | 32 x 32 | 32 x 32 | 32 x 32 | 32 x 32 | 32 x 32 | 32 x 32 | 32 x 32 | 32 x 32 | 32 x 32 |
Tail Stock
| DESCRIPTION | UNIT | LX 1000 | LX 1000 SUPER | LX 1500 | LX 1500 SUPER | LX 2000 | LX 2000 SUPER | LX 2500 | LX 2500 SUPER | LX 3000 | LX 3000 SUPER |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Quill Diameter | MM | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Quill Stroke | MM | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Quill Tapper | - | MT-5 | MT-5 | MT-5 | MT-5 | MT-5 | MT-5 | MT-5 | MT-5 | MT-5 | MT-5 |
Accuracy
| DESCRIPTION | UNIT | LX 1000 | LX 1000 SUPER | LX 1500 | LX 1500 SUPER | LX 2000 | LX 2000 SUPER | LX 2500 | LX 2500 SUPER | LX 3000 | LX 3000 SUPER |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Positioning Accuracy | MM | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 |
| Repeatability | MM | 0.007 | 0.007 | 0.007 | 0.007 | 0.007 | 0.007 | 0.007 | 0.007 | 0.007 | 0.007 |
Other Data
| DESCRIPTION | UNIT | LX 1000 | LX 1000 SUPER | LX 1500 | LX 1500 SUPER | LX 2000 | LX 2000 SUPER | LX 2500 | LX 2500 SUPER | LX 3000 | LX 3000 SUPER |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Weight (Approx.) | KG | 6800 | 6900 | - | - | - | - | - | - | - | - |
| Dimensions (L x W x H)(Approx.) | MM | 4330x2300x2270 | - | - | - | - | - | - | - | - | - |
System
| DESCRIPTION | UNIT | LX 1000 | LX 1000 SUPER | LX 1500 | LX 1500 SUPER | LX 2000 | LX 2000 SUPER | LX 2500 | LX 2500 SUPER | LX 3000 | LX 3000 SUPER |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Fanuc | - | OI TF PLUS | OI TF PLUS | OI TF PLUS | OI TF PLUS | OI TF PLUS | OI TF PLUS | OI TF PLUS | OI TF PLUS | OI TF PLUS | OI TF PLUS |
| Siemens | - | 828 D | 828 D | 828 D | 828 D | 828 D | 828 D | 829 D | 830 D | 831 D | 832 D |
