Vertical machining center

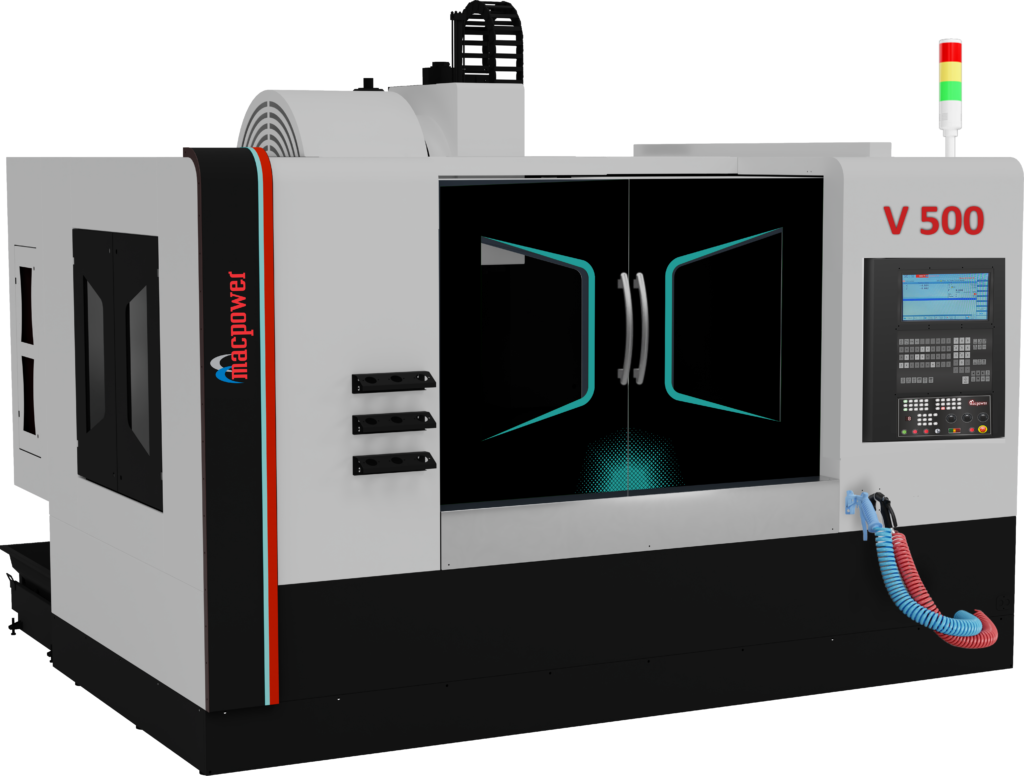

Vibrant 500
The Vibrant 500 is a robust, high-capacity vertical machining centre developed for accurate, efficient, and continuous production.
VMC Machine
Vibrant 500
| TABLE SIZE (CLAMPING AREA) | 450x650 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 525 / 500 / 500 MM |
| RAPID X/Y/Z AXIS | 30/30/30 M/MIN |
| LOAD CAPACITY | 500 KG |
| SPINDLE | BT - 40 - |
| RATED POWER (FANUC) | 5.5 / 7.5 KW |
| WEIGHT (APPROX) | 4060 KG |
| DIMENSIONS (APPROX) (WXDXH) | 2332x2845x2890 MM |
VMC Machine
Vibrant 500
The machine features a BT40 spindle with a speed range of 80 to 8,000 rpm and a cutting feed rate of up to 10,000 mm/min. Spindle power options of 5.5 kW and 7.5 kW support stable material removal across varied machining operations. A twin-arm automatic tool changer with a 24-tool capacity enables quick, reliable tool changes, while random tool selection helps reduce idle time and improve cycle efficiency.
Engineered for consistent dimensional control, the Vibrant 500 delivers positioning accuracy of 0.01 mm and repeatability of 0.007 mm. Its rigid, well-balanced structure supports dependable machining quality, reduced vibration, and repeatable performance during extended production runs.
With approximate dimensions of 2332 × 2845 × 2890 mm and a machine weight of around 4060 kg, the Vibrant 500 combines strong machining capability with a practical industrial footprint. It is available with Fanuc, Siemens, and Mitsubishi control systems, offering flexible, easy integration into different manufacturing environments.
