Vertical machining center
Vibrant 1055

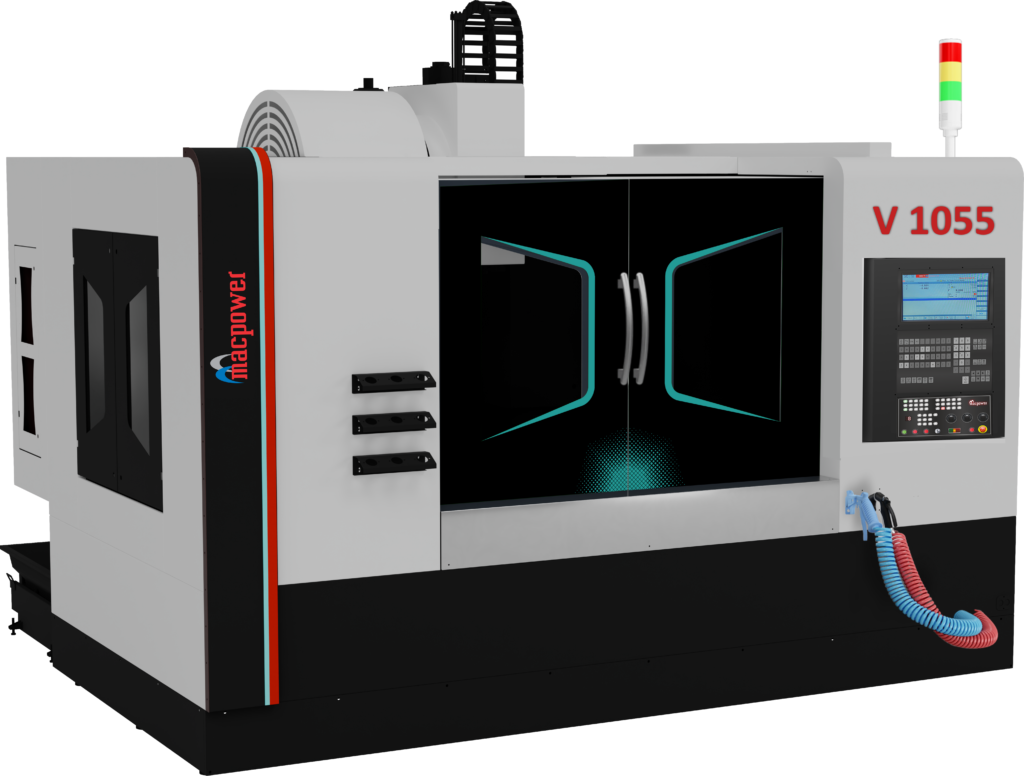

The V 1055 is a heavy-duty, high-performance vertical machining centre developed for precise, stable, and continuous production.
VMC Machine
Vibrant 1055
| TABLE SIZE (CLAMPING AREA) | 500x1200 MM |
|---|---|
| AXIS STROKE (X / Y / Z) | 1050 / 510 / 510 MM |
| RAPID X/Y/Z AXIS | 30/30/30 M/MIN |
| LOAD CAPACITY | 1000 KG |
| SPINDLE | BT - 40 / BT - 50 - |
| RATED POWER (FANUC) | 11 / 15 KW |
| WEIGHT (APPROX) | 6200 KG |
| DIMENSIONS (APPROX) (WXDXH) | 2745x3168x3057 MM |
VMC Machine
Vibrant 1055
The machine is available with BT40 or BT50 spindle configurations and operates across a speed range of 80 to 8,000 rpm. A cutting feed rate of up to 10,000 mm/min, combined with rated spindle power options of 11 kW and 15 kW, delivers strong, controlled performance for demanding machining applications. Its twin-arm automatic tool changer holds 24 tools and supports quick, reliable tool changes with random tool selection.
Engineered for precise, repeatable results, the V 1055 provides positioning accuracy of 0.01 mm and repeatability of 0.007 mm. Its rigid, well-balanced construction supports reduced vibration, consistent surface finish, and dependable dimensional control during prolonged production cycles.
With approximate dimensions of 2745 × 3168 × 3057 mm and a machine weight of around 6200 kg, the V 1055 combines a large machining envelope with robust structural stability. It is compatible with Fanuc, Siemens, and Mitsubishi control systems, offering flexible, straightforward integration into varied industrial manufacturing environments.
