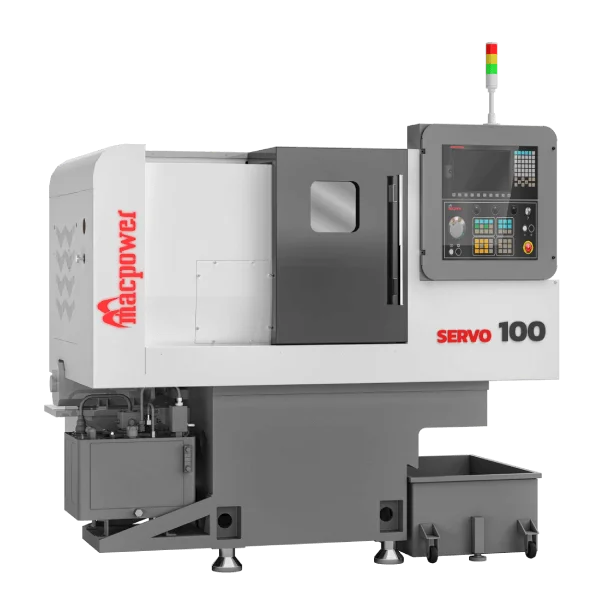

Flat Bed Turning Center
SERVO Series
Reliable flat bed CNC turning centers engineered for precision machining, stable performance, and cost-effective production across a wide range of turning applications.
Flat Bed Turning Center
Servo Series
In today’s competitive market, you need robust CNC turning centers with uncompromised performance and specifications to produce world class products quickly accurately and with minimum non productive time.
Machine Output
Technical Specifications
Capacity
| DESCRIPTION | UNIT | Servo 100 | Servo 200 |
|---|---|---|---|
| Swin Over Bed | mm | ø 400 | ø 450 |
| Maximum Cutting Dia. | mm | ø 160 | ø 240 |
| Maximum Cutting Length | mm | 280 | 280 |
Slides
| DESCRIPTION | UNIT | Servo 100 | Servo 200 |
|---|---|---|---|
| X Axis Travel | mm | 500 | 500 |
| Z Axis Travel | mm | 280 | 280 |
| Rapid Feed (X & Z axis) | m/min | 24 | 24 |
Main Spindle
| DESCRIPTION | UNIT | Servo 100 | Servo 200 |
|---|---|---|---|
| Spindle Nose | - | A2-5 | A2-6 |
| Bar Capacity | mm | ø 32 | ø 42 |
| Chuck Size | mm | ø 165 X 3 Jaw | ø 200 X 3 Jaw |
| Spindle Speed | rpm | 50 - 3500 | 50 - 3000 |
| Spindle Motor (Servo) | KW | 5.5 | 7.5 |
Tooling Arrangement
Max. Boring Blockmm3232
| DESCRIPTION | UNIT | Servo 100 | Servo 200 |
|---|---|---|---|
| Tools Cross Section | mm. | 20/20 | 25/25 |
Other Data
| DESCRIPTION | UNIT | Servo 100 | Servo 200 |
|---|---|---|---|
| Macatrol | - | Turn-1 | Turn-1 |
Accuracy
| DESCRIPTION | UNIT | Servo 100 | Servo 200S |
|---|---|---|---|
| Positioning Accuracy | mm | 0.008 | 0.008 |
| Repeatability | mm | 0.007 | 0.007 |
