Turret Series

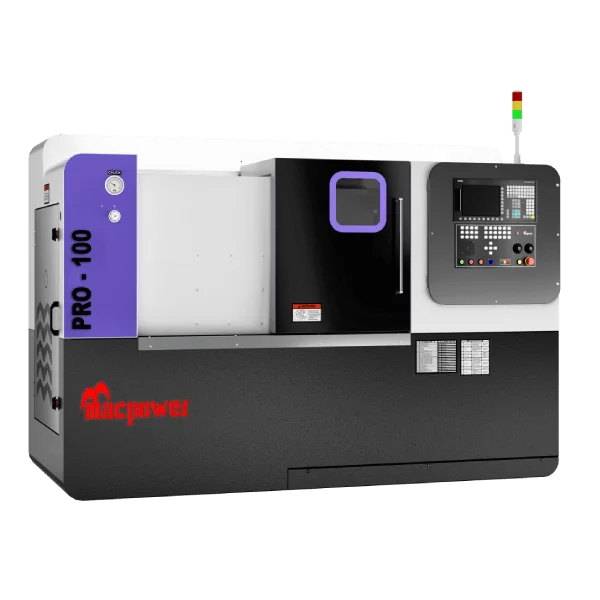

PRO Series
Robust CNC turning centers engineered for fast, accurate production—combining reliable turret performance, stable machining, and consistent output for modern manufacturing demands.
Turret Series
Pro Series
In today’s competitive market, you need robust CNC turning centers with uncompromised performance and specifications to produce world class products quickly accurately and with minimum non productive time.
Machine Output
Technical Specifications
Capacity
| DESCRIPTION | UNIT | Pro 100 | Pro 200 |
|---|---|---|---|
| Maximum Turning Dia. | mm | ø 150 | ø 150 |
| Swin Over Bed | mm | ø 400 | ø 400 |
| Maximum Turning Length | mm | 280 | 280 |
Slides
| DESCRIPTION | UNIT | Pro 100 | Pro 200 |
|---|---|---|---|
| Cross (X axis) Travel | mm | 650 | 650 |
| Longitudinal (Z axis) Travel | mm | 280 | 280 |
| Rapid Feed (X & Z axis) | m/min | 24 | 24 |
Main Spindle
| DESCRIPTION | UNIT | Pro 100 | Pro 200 |
|---|---|---|---|
| No. of Tools | No. | 4 | 4 |
| Tool Size | mm | 20 x 20 | 20 x 20 |
| Max. Boring Bar Capacity | mm | ø 32 | ø 32 |
Tooling Arrangement
| DESCRIPTION | UNIT | Pro 100 | Pro 200 |
|---|---|---|---|
| No. of Tools | No. | 4 | 4 |
| Tool Size | mm | 20 x 20 | 25 x 25 |
| Max. Boring Bar Capacity | mm | ø 32 | ø 32 |
Other Data
| DESCRIPTION | UNIT | Pro 100 | Pro 200 |
|---|---|---|---|
| Weight (Approx.) | kg. | 2000 | 2100 |
Accuracy
| DESCRIPTION | UNIT | Pro 100 | Pro 200 |
|---|---|---|---|
| Positioning Accuracy | mm | 0.008 | 0.008 |
| Repeatability | mm | 0.007 | 0.007 |
