Turning Center

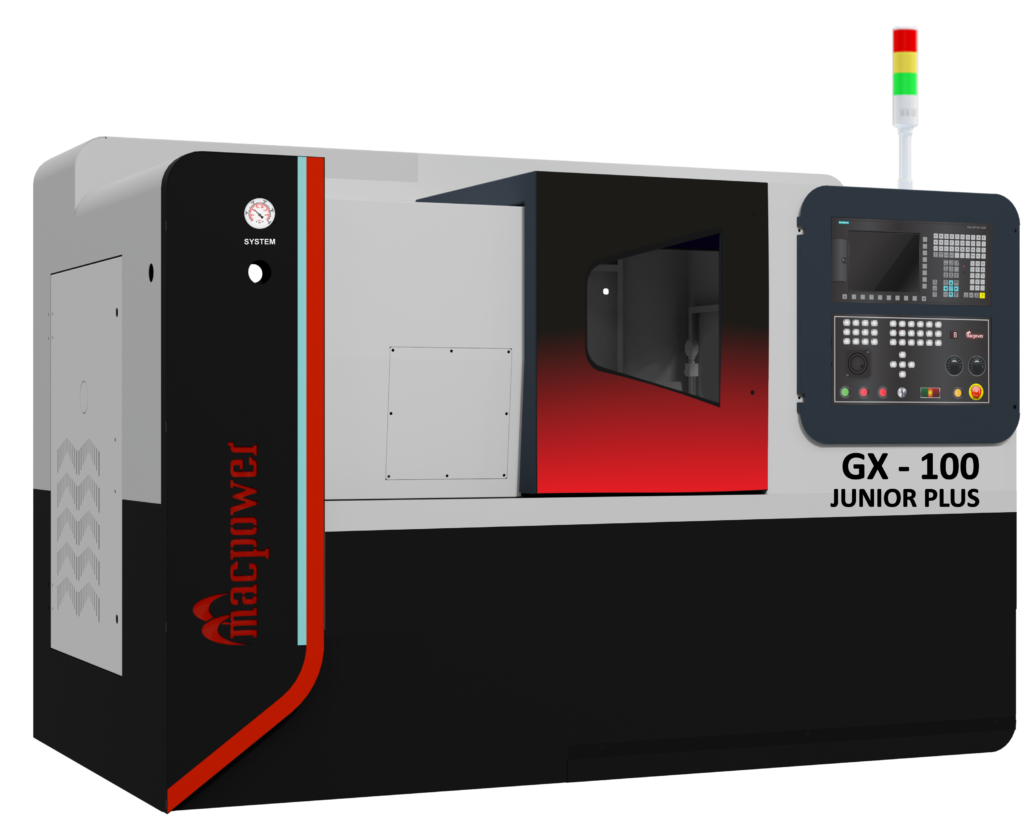

GX 100 JUNIOR PLUS
The GX 100 Junior Plus is a compact CNC turning center designed for precise, stable machining with enhanced chuck capacity, larger spindle bore, and reliable production performance.
Turning Center
GX 100 JUNIOR PLUS
| STD. TURNING DIA | 90 MM |
|---|---|
| MAX. TURNING DIA | 135 MM |
| MAX. TURNING LENGTH | 150 MM |
| TRAVEL (X / Z) | 250 / 150 MM |
| RAPID FEED (X / Z) | 24 M/MIN |
| CHUCK SIZE | 165x3 MM |
| SPINDLE POWER (SIEMENS) | 3.7 / 5.5 KW |
| SPINDLE BORE | 54 MM |
| SPINDLE NOSE | A2 - 5 |
| WEIGHT (APPROX) | 2100 KG |
Turning Center
GX 100 JUNIOR PLUS
In today’s competitive market, you need robust CNC turning centers with uncompromised performance and specifications to produce world class products quickly accurately and with minimum non productive time.
